DESCRIPTION

Basic Info.

Model NO.	JY-SRH273
Form	Heating Wire
Shape	Plate
Structure Materia	Silicone Rubber and Metal
Heat Transfer Surface	Plate Heat Exchanger
Size/Shape Limitations	Maximum Width of 48 Inches, No Maximum Length
Heating Element	Nickel-Chromium or Copper-Nickel Resistance Wire W
Silicone Heater Water Proof	IP44
HS	85168000
Power Lead Wire	Silicone Rubber, Sj Power Cord, or PTFE Insulate
Temperature Rating	400 ° F ( 204 ° C ) Maximum Operating
Thickness	1.5mm or Customized
Insulation	Red Sponge Insulator
Working Temperature	-40-250 Degree
Power Density	3-5W/Square Centimetre
Wattage	Customized
Logo Mark	Make as Customer Required
Voltage	12V, 36V, 48V, 110V, 220V, 240V, etc
Transport Package	Carton with Plastic
Specification	Customized silicone heater
Trademark	Jaye
Origin	China
HS Code	851680000
Production Capacity	100000PCS/Month

Packaging & Delivery

Package Size 40.00cm * 35.00cm * 30.00cm Package Gross Weight 10.000kg

Product Description

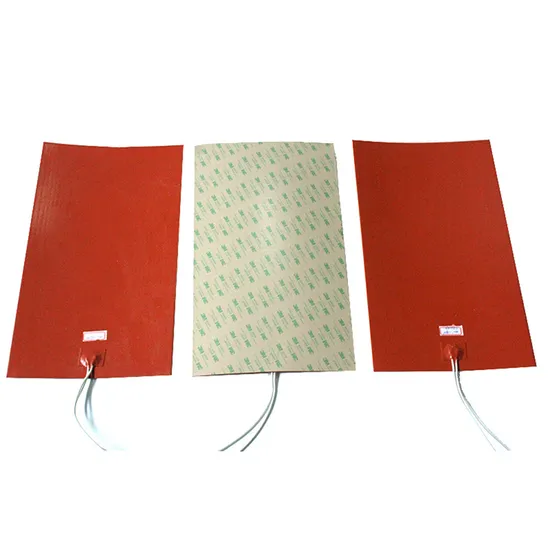

Silicone Rubber Heating Elements for 3D Printer
The silicone heating pad has advantages of thinness, lightness and flexibility. It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters.

Features:
Designed according to actual shape and dimension, including three-dimensional geometry to meet the requirement of your equipment. Moistureproof and non-slip silicone rubber material offers longer working life of heaters.Simply sticking to your components through sulfuration, adhesive or fixer.

Surface Temperature VS. Time:
This drawing explains the surface temperature of a silicone rubber heater when it is not insulated and be put vertically at 20 ºC still air. The data is supported as reference tool according to the standard structure of 1.4mm thickness.

Technical Parameters:

Dimension	Dimensions on request
Thickness	4.5mm Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request(Any AC or DC)
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Max surface temperature	300 degree
Min exposure temperature	-60 degree
Size/Shape Limitations	Maximum width of 48 inches, no maximum length

Construction:
Related Products:
Appliance:
1. Freezing protection and anti-pressure, can be used in all kinds of instruments and equipments
2. Applied in the medical equipments such as blood analyzer, test pipe heater, etc
3. The auxiliary equipments of computer such as laser printer, etc
4. Plastic film sulfuration
Production Line:
Certificate:

FAQ (1). Q: Can you give me a discount price?
A: It is depending on the quantity. The larger the quantity is, the more discount you can enjoy.(2). Q: How can I get a sample?
A: Normally For most our products can be sent free of sample charge if the quantity is small and customers only need to bear the shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us. If the quantity is big, we need to charge a sample fee.(3). Q: Why does your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.Our price maybe not the lowest, but our cost performance is the highest.(4). Q: How can you guarantee the quality of mass production keep the same with the sample sent to me before?
A: Our warehouse staff will leave another same sample with your company name marked in our company before sending the samples to you to ensure the same production as the samples.
